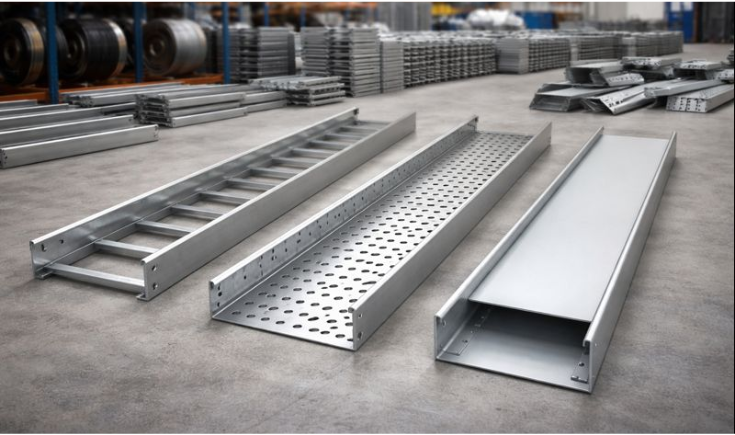

Different Types of Cable Trays Used in India
27 January 2026 || By: Admin
As India’s industrial, commercial, and infrastructure sectors expand rapidly, efficient cable management is more critical than ever. Proper cable support and routing not only ensure safety and durability but also simplify maintenance and future expansions.
Cable trays are the preferred solution for organizing and protecting electrical, control, and data cables. Unlike conduits, they allow for easy cable access, heat dissipation, and flexible installation, making them ideal for a variety of applications.
Hutaib Electricals, a leading cable tray manufacturer in India
Hutaib Electricals offers high-quality ladder, perforated, and raceway cable trays designed to meet the diverse needs of Indian industries. Let’s explore the types and their applications.
1. Ladder Type Cable Tray
Ladder cable trays are the most commonly used in India. They consist of two side rails connected by horizontal rungs, resembling a ladder, which provides maximum ventilation and support for heavy cables.
Key Features:
- High load-bearing capacity for large power cables
- Excellent ventilation to prevent overheating
- Supports long-span installations without additional support
- Easy cable laying and maintenance
Applications:
- Thermal and renewable power plants
- Oil & gas refineries
- Metro rail and infrastructure projects
- Heavy industrial complexes
Materials:
- GI (Galvanized Iron) for corrosion resistance
- Mild Steel (MS) for indoor use
- Aluminium for lightweight, anti-corrosion needs
- Powder-coated finishes for extra durability
Pro Tip: Ladder trays are ideal for outdoor or high-load installations in India due to their strength and airflow.
2. Perforated Cable Tray
Perforated cable trays feature a solid base with uniform holes that allow moderate ventilation while supporting medium-load cables. They are popular for indoor commercial, IT, and institutional projects.
Key Features:
- Prevents cable sagging and provides uniform support
- Moderate ventilation for heat dissipation
- Clean and neat appearance for exposed installations
Applications:
- Commercial buildings and office complexes
- Hospitals and laboratories
- Airports and educational institutions
- Instrumentation and low-voltage wiring
Materials:
- GI, MS, Aluminium
- Custom thickness and finishes as per project requirements
Pro Tip: Use perforated trays where medium cable load and indoor protection are needed, such as control and data cables.
3. Raceway (Solid Bottom) Cable Tray
Raceway cable trays, also called solid bottom trays, offer maximum protection for cables, shielding them from dust, moisture, chemicals, and mechanical damage. They are ideal for sensitive environments.
Key Features:
- Complete mechanical and environmental protection
- Professional and clean appearance
- Suitable for indoor or controlled environments
Applications:
- Pharmaceutical and food processing industries
- Clean rooms and laboratories
- High-end commercial buildings
- Indoor areas requiring cable protection
Materials:
- GI, MS, Aluminium
- Powder-coated or hot-dip galvanized for corrosion resistance
Pro Tip: Raceway trays are perfect for areas where cable safety and aesthetics are critical.
Comparison of Cable Tray Types
| Feature | Ladder | Perforated | Raceway |
|---|---|---|---|
| Ventilation | Excellent | Moderate | Low |
| Load Capacity | High | Medium | Medium–Low |
| Cable Protection | Medium | High | Very High |
| Typical Use | Heavy power cables | Control/data cables | Sensitive environments |
| Cost | Economical | Moderate | Higher |
How to Choose the Right Cable Tray in India
When selecting a cable tray, consider:
- Cable type: Power, control, or data cables
- Load and span: Heavy-duty or light-duty applications
- Indoor vs outdoor environment: Exposure to dust, moisture, and temperature
- Compliance: Must meet IS, IEC, or NEC standards
- Future expansion: Choose a system that can accommodate additional cables
- Budget: Balance cost with durability and performance
Hutaib Electricals provides expert guidance to help you select the right cable tray type, size, and finish for any project in India.
Why Choose Hutaib Electricals?
- High-quality raw materials for long-term durability
- Compliance with Indian and international standards
- Custom sizes, finishes, and designs for every project
- Competitive pricing for industrial, commercial, and infrastructure applications
- Trusted across India for reliability and timely delivery
Whether you need ladder, perforated, or raceway cable trays, Hutaib Electricals delivers durable, efficient, and cost-effective solutions tailored to your project.
Conclusion
Selecting the right cable tray—ladder, perforated, or raceway—is crucial for safe, efficient, and long-lasting electrical installations. Each type offers unique advantages depending on load, environment, and application.
For high-quality cable trays manufactured in India, Hutaib Electricals is your trusted partner, providing solutions that meet industrial standards, protect your cables, and ensure smooth operations.
