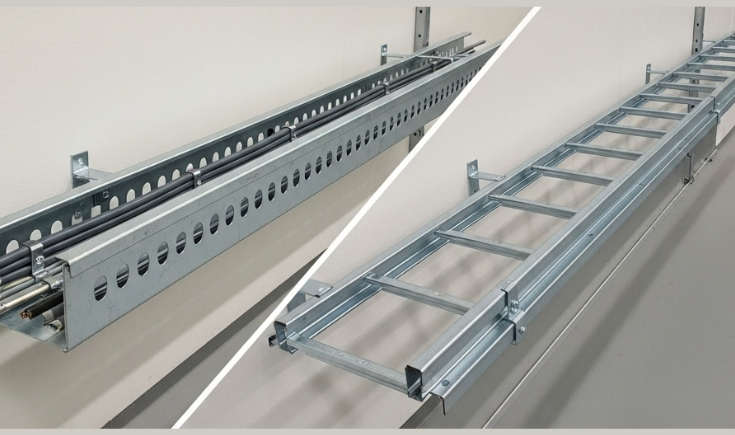

Perforated vs. Ladder-Type Cable Trays: Which Is Right for Your Project
15 September 2025 || By: Admin
Introduction
When it comes to managing electrical and data cables, choosing the right cable tray system is essential. Among the most widely used options are perforated cable trays and ladder-type cable trays. Each type has its own benefits, making it important to understand their differences before making a decision.
This guide breaks down perforated vs. ladder-type cable trays, their features, advantages, and ideal applications—helping you choose the best option for your project.
Understanding Cable Trays
Cable trays provide a safe, organized pathway for running cables in commercial, industrial, and infrastructure projects. They:
- Support and protect power, signal, and data cables.
- Improve safety by reducing clutter.
- Allow for better airflow and heat dissipation.
- Simplify maintenance and upgrades.
What Are Perforated Cable Trays?
Perforated cable trays are made from a solid sheet of metal with holes or perforations punched into the bottom. These holes provide ventilation and allow water to drain, while the solid bottom offers a secure surface for smaller cables.
Ideal For:
- Data centers and IT installations with a high density of sensitive cables.
- Commercial buildings and offices.
- Areas where dust and debris could accumulate.
What Are Ladder-Type Cable Trays?
Ladder-type cable trays resemble a ladder, with two side rails connected by rungs. This open design provides maximum ventilation, which is crucial for high-voltage cables that generate significant heat.
Ideal For:
- Industrial plants and heavy-duty applications.
- Outdoor installations exposed to rain and environmental elements.
- Areas with large and heavy power cables.
Key Differences: Perforated vs. Ladder Trays
-
Support and Cable Protection
Perforated trays offer continuous support, which is excellent for sensitive or small-diameter cables, preventing them from sagging. The enclosed design also provides a higher degree of physical protection.
Ladder trays support cables only at the rungs, but this is sufficient for most large and heavy cables. The open structure makes it easier to install and drop cables at any point.
-
Ventilation and Heat Dissipation
Ladder trays provide superior ventilation, which is a major advantage for high-ampere cables that require efficient heat dissipation to prevent overheating and power loss. Perforated trays offer moderate ventilation through their holes.
-
Installation and Maintenance
Perforated trays are generally lighter and easier to cut and modify on-site. However, pulling cables through them can be more challenging.
Ladder trays are known for their ease of installation and maintenance. Cables can be easily accessed and added or removed by simply tying them to the rungs.
-
Cost-Effectiveness
Generally, ladder-type cable trays are more economical for supporting a large number of heavy cables over long spans, as they use less material. Perforated trays are often slightly more expensive per foot due to the additional material and manufacturing process.
Conclusion: Making the Right Choice
Choosing between perforated and ladder-type cable trays depends on your project's specific needs.
- Choose a perforated tray if you need continuous support and protection for a high number of small, sensitive cables, such as in data centers or commercial office spaces.
- Opt for a ladder tray if you're dealing with heavy-duty power cables, require maximum airflow, or need easy access for future modifications, as is common in industrial settings and outdoor installations.
At Hutaib Electricals, we offer a comprehensive range of both perforated and ladder-type cable trays, along with expert advice to help you select the perfect system for your project. Our products are manufactured to the highest quality standards, ensuring durability and reliability.
Contact Hutaib Electricals today to discuss your project and find the best cable management solution.
